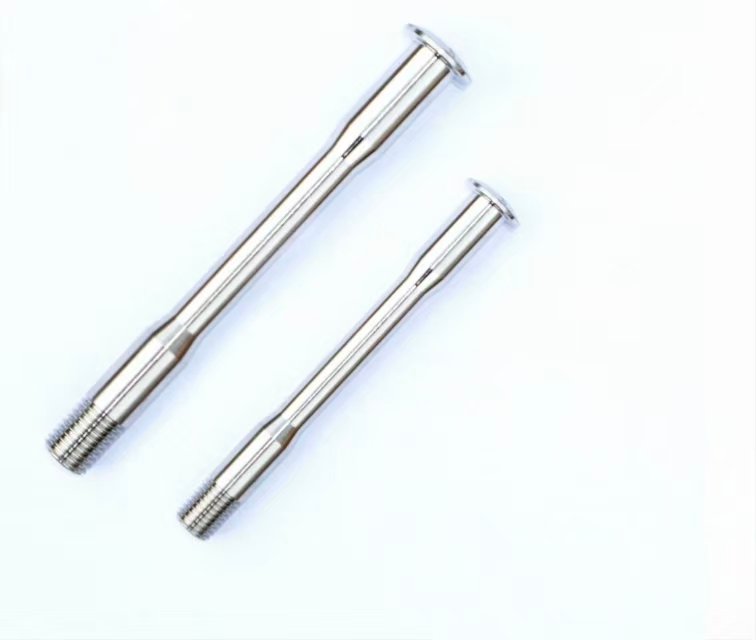

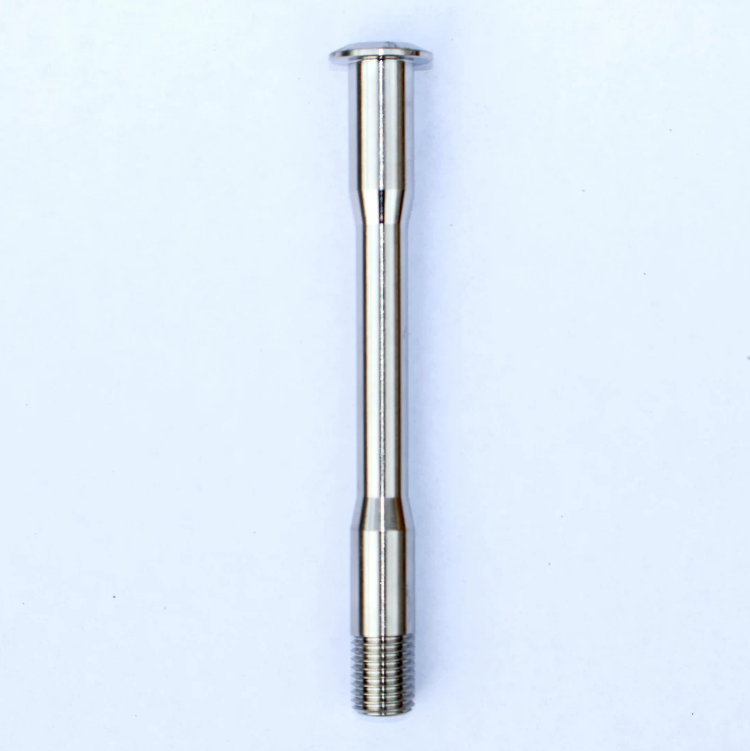

Titanium Thru-Axle – M12×1.5 Thread Pitch

Engineered for performance-oriented cyclists and bike builders, this titanium thru-axle features the industry-standard M12×1.5 thread pitch – the most widely adopted specification for modern disc brake road, gravel, mountain, and e-bikes. Precision machined from high-grade titanium alloy, it delivers an exceptional balance of strength, weight savings, and corrosion resistance.

Features & Benefits
1. Precision Thread – M12×1.5
The M12×1.5 thread pitch is the industry standard for disc brake thru-axles. It provides:

Smooth engagement with most frame and fork threads

Optimal clamping force without cross-threading risk

Easy replacement – fits brands like Specialized, Trek, Canyon, Giant, and more

2. Lightweight Titanium Construction
Up to 50% lighter than steel axles

Reduces rotational and unsprung weight

Improves acceleration and handling response

3. Superior Strength & Fatigue Life
Higher strength-to-weight ratio than steel

Excellent fatigue resistance – won’t weaken over time like aluminum

Reliable for high-torque and heavy-load applications (e-bikes, cargo bikes, mountain bikes)

4. Complete Corrosion Protection
Naturally rust-proof – no plating or coating required

Ideal for wet, coastal, or winter riding conditions

Maintains clean appearance without peeling or flaking

5. Customizable to Your Frame
Every frame is different. We offer full customization:

Overall length: based on your frame’s dropout spacing

Thread length: matched to your frame’s threaded insert depth

Head style: hex socket (flush fit), integrated lever, or removable lever

Available Configurations

Titanium Thru-Axle
Specification	Threaded diameter	Length	Over-Locknut Dimension	Thread Pitch	Thread Length	weight
12*118*1.5	12	118	100	1.5	15	APPROX.33.2g
12*120*1.5	12	120	100	1.5	17	APPROX.33.6g
12*123*1.5	12	123	100	1.5	16	APPROX.34.6g
12*125*1.5	12	125	100	1.5	17	APPROX.34.6g
12*128*1.5	12	128	100	1.5	17	APPROX.35.3g
12*158*1.5	12	158	142	1.5	15	APPROX.39.2g
12*162*1.5	12	162	142	1.5	15	APPROX.41.9g
12*165*1.5	12	165	142	1.5	17	APPROX.42.5g
12*168*1.5	12	168	142	1.5	19	APPROX.40g
12*171*1.5	12	171	142	1.5	19	APPROX.43.2g

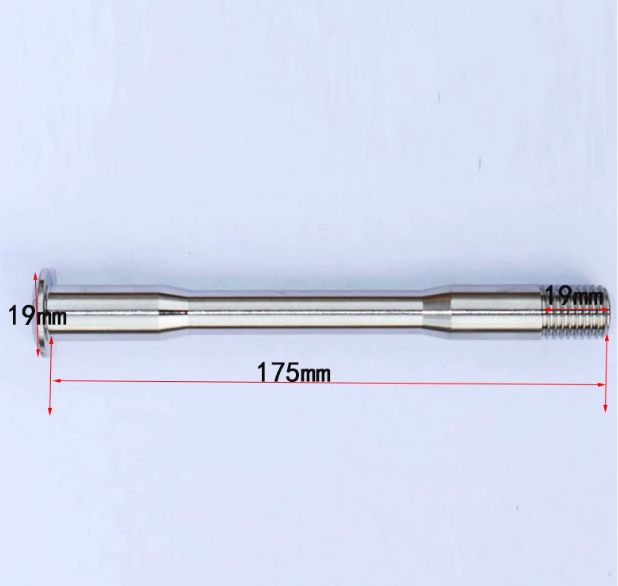

12*175*1.5	12	175	148	1.5	19	APPROX.42g
12*181*1.5	12	181	148	1.5	19	APPROX.44.5g

Finish Options
Raw Titanium Natural matte silver – classic titanium look
Brushed Satin finish with fine grain lines
Polished High-gloss mirror finish

Important: Always verify your frame’s thread pitch before purchasing. Some older or proprietary frames may use M12×1.0, M12×1.75, or other non-standard threads.

What’s Included
1 × Titanium thru-axle (custom length)

Optional: Removable lever (for tool-less head style)
Optional: Anti-seize compound pre-applied

Ordering Information
To place an order, please provide the following:

Axle type (Front / Rear / Boost)

Overall length required (mm)

Thread length required (mm)

Head style preference

Finish preference

Quantity

Custom lengths available with no minimum order quantity (MOQ) for sample orders.

Why Choose Our Titanium Thru-Axles?
Precision CNC machined – tight tolerances, smooth threads

True M12×1.5 – verified with thread gauges

100% quality inspected before shipping

Fast lead time – 15–25 days for custom orders

Wholesale & drop shipping available
