Upgrade your bike’s carrying capacity without the weight penalty. Our Titanium Grade 9 Rear Rack is precision-crafted for riders who need a reliable, rustproof, and featherlight rack for commuting, touring, or weekend adventures.
At just 332 grams, it’s lighter than most aluminum racks and significantly stronger than steel – with zero corrosion, ever.
Key Specifications
| Parameter | Specification |
|---|---|
| Material | Titanium Alloy – Grade 9 (Ti-3Al-2.5V) |
| Weight | Approx. 332g |
| Max Load Capacity | 25kg (55 lbs) |
| Mount Type | Seatpost collar + eyelet mount |
| Compatibility | Disc brake & rim brake road/gravel bikes |
| Tire Clearance | Up to 42mm (road) / 47mm (gravel) |
| Tube Diameter | 10mm (main platform) |
| Finish | Raw titanium / Brushed |
| Color | Natural titanium silver |
Why Titanium Grade 9?
Grade 9 titanium (Ti-3Al-2.5V) is the ideal material for bike racks:
| Property | Benefit |
|---|---|
| High strength-to-weight | Strong yet ultra-light |
| Naturally rustproof | No paint, no plating – never corrodes |
| Excellent fatigue life | Won’t crack over time like aluminum |
| Natural flex | Absorbs vibrations – cargo stays stable |
Features & Benefits
1. Incredibly Light – Only 332g
Most steel racks weigh 600–900g. Our Ti Gr9 rack saves you up to 500g of high-mounted weight – improving bike handling and climbing.
2. 25kg Load Capacity
Don’t let the low weight fool you. This rack is strong enough for panniers, trunk bags, or lightweight touring loads – tested to 25kg (55 lbs).
3. 100% Rustproof
Rain, snow, humidity, or coastal salt – titanium never corrodes. Your rack will look and perform like new for decades.
4. Perfect for Road & Gravel
-
Slim profile matches road bike aesthetics
-
Clearance for up to 42mm tires (road) or 47mm (gravel)
-
Compatible with both disc and rim brakes
5. Easy Installation
-
Standard eyelet mounting (M5 bolts)
-
Seatpost collar mount included
-
All hardware included (titanium bolts upgrade available)
Compatibility
| Frame Type | Compatible? | Notes |
|---|---|---|
| Road bike (with eyelets) | Yes | Most endurance/gravel frames |
| Gravel bike | Yes | Check tire clearance |
| Commuter / hybrid | Yes | Standard mounting |
| Full-suspension MTB | No | Requires seatstay mounting points |
| Carbon frame without eyelets | Limited | Use seatpost clamp adapter (sold separately) |
Available Options
| Option | Choices |
|---|---|
| Platform Width | 120mm (standard) / 140mm (wide) |
| Mount Type | Eyelet / Seatpost collar / Axle mount |
| Hardware | Stainless steel / Titanium bolts (upgrade) |
| Finish | Raw / Brushed / Polished |

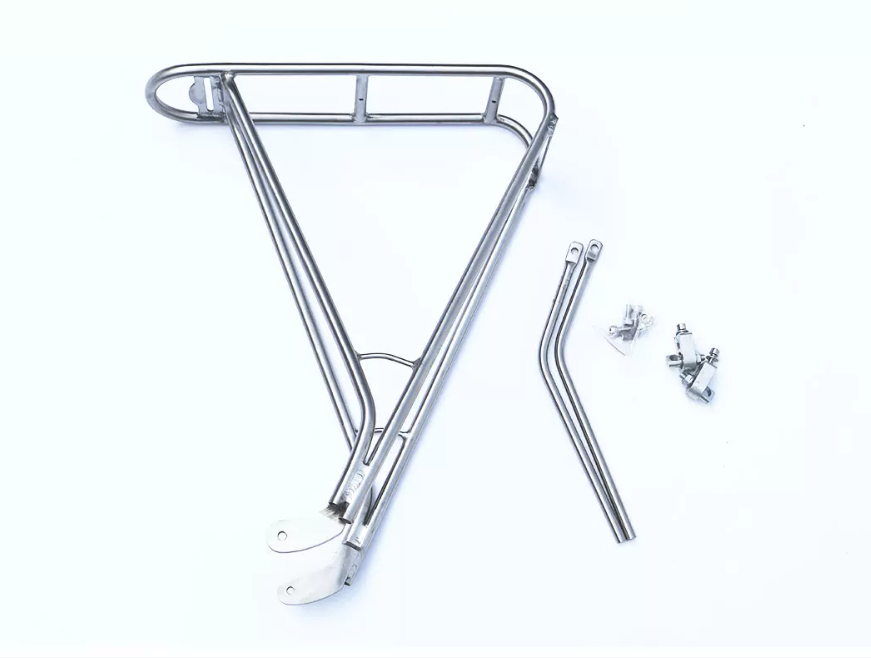

What’s Included
-
1 × Titanium Grade 9 rear rack
-
2 × Seatstay mounting brackets
-
1 × Seatpost collar mount
-
4 × Stainless steel M5 bolts
-
Installation instructions
Ideal For
-
Road bike commuting & light touring
-
Gravel bike bikepacking
-
Urban delivery & errands
-
E-bike rear cargo (adds minimal weight)
-
Custom & titanium frame builds
Technical Drawing / Dimensions
| Dimension | Measurement |
|---|---|
| Platform length | 280mm |
| Platform width | 120mm |
| Height (eyelet to platform) | 320–350mm (adjustable) |
| Weight | ~380g |
| Max load | 25kg |
Ordering Information
To order, please specify:
-
Frame type (road / gravel / other)
-
Wheel size (700c / 650b / 26″)
-
Brake type (disc / rim)
-
Preferred finish
-
Bolt material preference (steel or titanium upgrade)
Lead time: 15–20 days for stock items. Custom dimensions available on request.
Why Choose Our Titanium Rack?
-
True Grade 9 titanium – not lower-grade alloys
-
Precision TIG welded – clean, strong joints
-
100% rustproof – no coating to chip or peel
-
Lightweight & strong – 380g with 25kg capacity
-
Wholesale & drop shipping available
